Bo CNC Kit 16mm Ballscrew 1540mm SFU1605 RM1605 + 15mm Linear Motion Rail Set 1540mm, Ball Screw Nut+ BK/BF12 Supports+ Coupler+ Nut Housing+ Motor Bracket for Nema 23+ 2Pcs HGH15 Linear Rail Kit

Specifications: Brand: BopaodaoBallscrew Manufacturing Process and Precision: Rolled Thread, with C7 Grade (C5 is also available, please contact us)This package includes:- 1Pcs Ball Screw SFU1605 RM1605 16mm Length 60.63 inch / 1540mm (You can message us to know the travel/stroke length and thread length) - 1Pcs Ball Screw Nut- 1Pcs BK12/BF12 End Support Bearing Blocks and Motor Bracket for Nema 23 stepper motor with locknuts, circlips and mounting screws (BK support end and Motor Bracket are integrated, and the bearing in the BK is deep groove ball bearings, if you need angular contact bearings, pls tell us)If your motor is Nema 24 servo motor, we could also provide the motor bracket to match, please let us know - 1Pcs Coupler / Coupling (Standard for motor shaft 6.35mm, if not, tell us and we will manufacture it free for you)- 1Pcs Ball Screw Nut Housing- 2Pcs HGH15 Square Linear Rails Guideway, Length 60.63 inch / 1540mm- 4Pcs HGH15CA Bearing Carriage Sliding Block ( High Assembly and Square Slider )Besides the HGH CA block, there is EGH CA block ( Low Assembly and Square Slider ) to choose. If you have needs, please give us Amazon MessageLead Time: If this item is not FBA, the lead time is 7-10 Business Days except for Chinese Spring FestivalCustomizable Processing and Technical Support:1. We can provide any length that you want, and please let us know what lengths are suitable for you.2. If you need end machining according to your drawings, please tell us before order.3. As a professional seller, we can provide complete information of the products.（Contains CAD drawings and 3D modeling files）Please contact us.

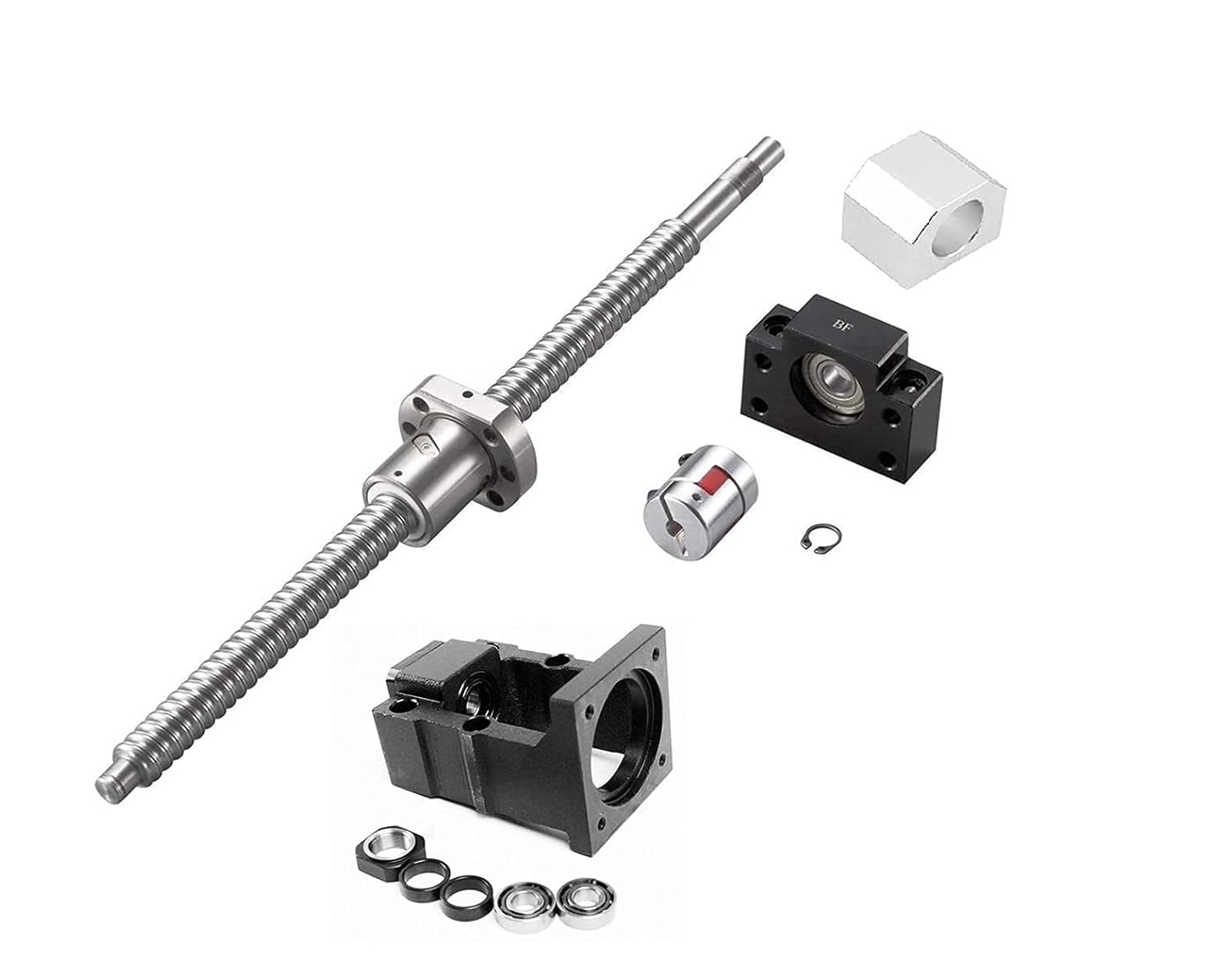

• Ball screw diameter: 16mm; Lead / Pitch: 5mm; Total length: 60.63 inch / 1540mm; Nut + BK12 integrate with Motor Bracket for stepper motor Nema 23/BF12 End support with locknuts and circlips + Flexible coupler + Ball Screw Nut Housing. The diameter of the coupler which matches the motor shaft is 6.35mm in default, if your size is other, pls tell us
• The ball screw kit can ensure motor shaft, coupling axial, axial bearing hole, and screw axis all in a line strictly, to make the transmission system run more accurately and sturdily, less noise and longer life. The material of the bk bearing support and Motor Bracket is cast steel, high hardness, shock resistance and high precision machining
• The ballscrew is no stick-slip effect, heats up less, reduce driving power required, small starting torque, able to apply high speed and micro-feeding

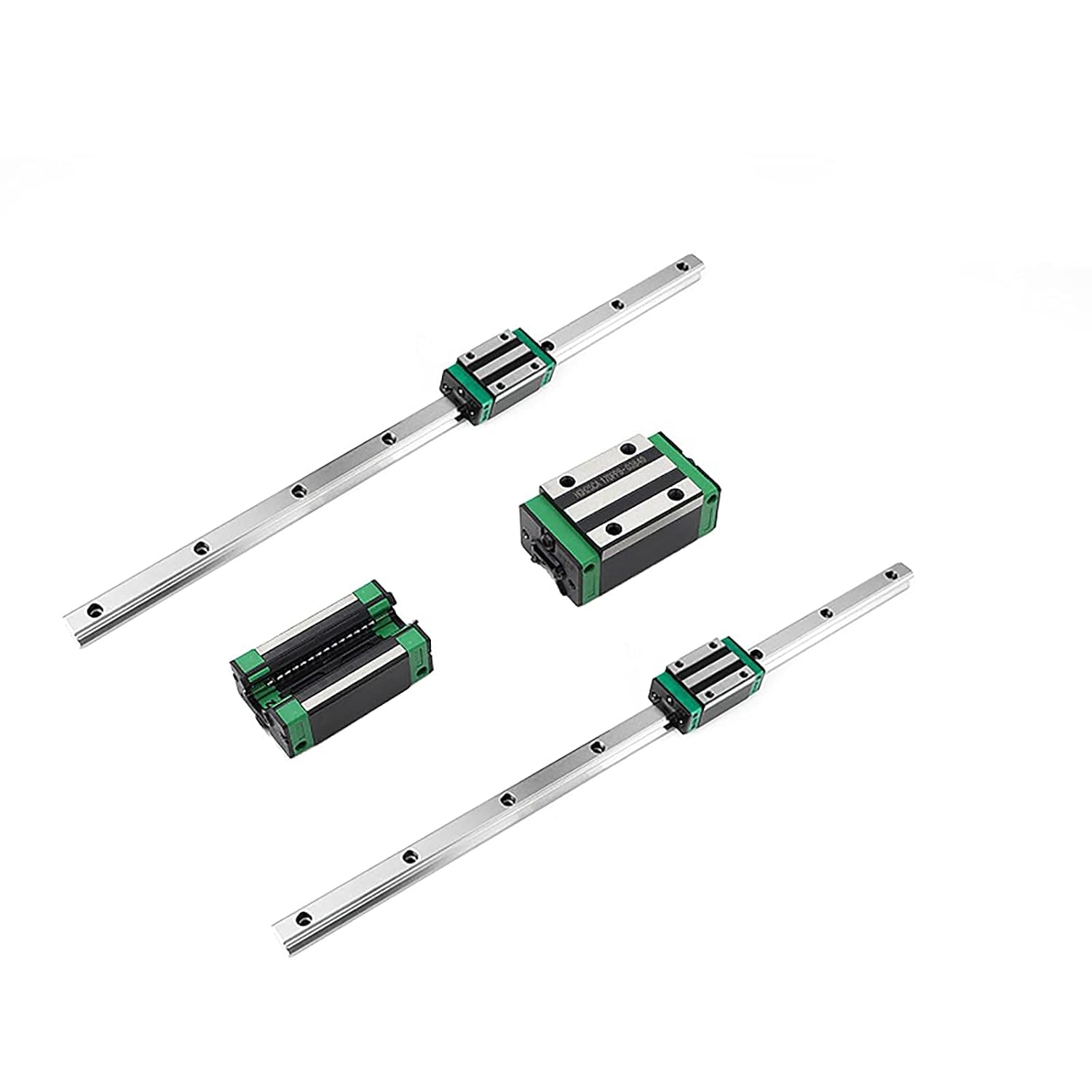

• 2Pcs linear rails HGH15 15mm length: 60.63 inch / 1540mm, 4Pcs HGH15-CA bearing slider carriage blocks. Strong bending resistance, difficultly deformed and twisted, ensuring precise linear motion, have high accuracy of the trajectory
• Innovative slider technology, smooth, low friction, high speed and silent operation. Can withstand the load in all directions with four-direction equal load characteristics and self-aligning to absorb installation-error
